P0171 Code: Causes, Symptoms, and solution

Code PO1071 is the first bank of the engine. Those codes indicate that the air-to-fuel ratio is reducing; that occurs due to different causes. In this, we will cover details for the PO1071 code and its main causes. So let’s get started.

What is the P0171 code

PO1071 code shows improper air and fuel adding into engine for operation. It shows a sign that the system is too late define that high air or low fuel exists in ssytemaccording to the requirement.
This engine code on the check engine light ofvehicles and it is a general code that shows models and manufcueers
Air flowing in the system is measured through a mass airflow sensor that shows the fuel injectors in the combustion chamber

oxygen sensor in the combustion chamber measures the amount of burned air and fuel for accurate measurements. The powertrain control module or engine control module maintains fuel according to the requirements of air/fuel ratio, and when system values increase, the required values, as a result system shows P0171 code.
As you find the PO171 diagnosis and solve it, if possible. po171 code indicates any serious faults that help to workwell.
If not solvefautls shortly can affect different parts of vehicles like the spark plug, catalytic converter.

P0171 Code Sign

A common sign is that the check engine light illuminates over the dashboard, showing P0171 code faults.
Engine performance degrades due to the loss of power during acceleration. The
The engine becomes idle and shows vibrating signs. Also, in some serious conditions, the engine becomes stalled at low speeds and during stopping.
When a lean condition occurs, the ECM gets more fuel in bad efficiency.
During acceleration, the car causes jerking.

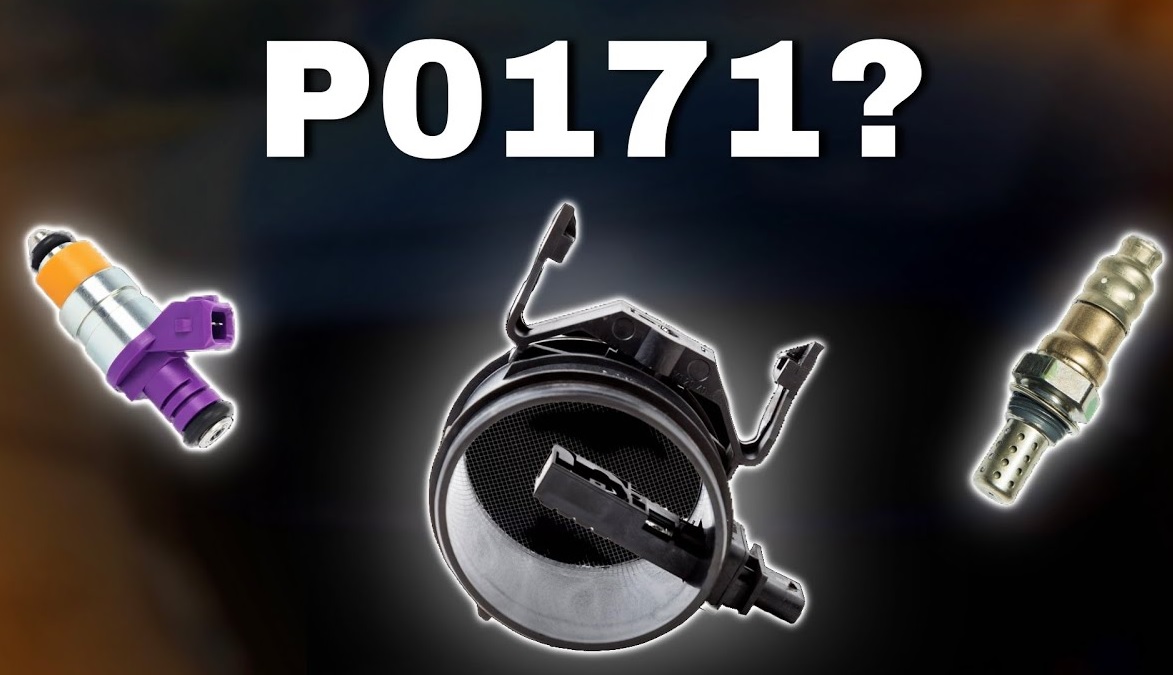

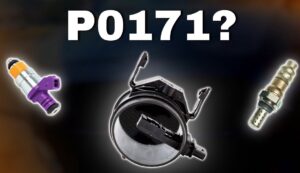

Causes of P0171 Code

The main causes of P0171 codes are based on air and fuel. Fuel-based faults occur due to low pressure. Vacuum leaking causes high air in the system, and po171 occurs due to different faults that affect the engine’s working.

older fuel pump

With the passage of time, the fuel pump becomes older; parts of the motor wear and become less effective. If the pump does not deliver the required fuel to the system, this code po171 and CEL will appear. Checking fuel pump power helps to get this error.

Inefficient Fuel Injectors

If fuel is not being delivered to the fuel pump, that means the fuel injectors are not working well. The faulty fuel injector does not deliver a certain amount of gasoline to the engine. Fuel injectors are needed to check the engine design.

Fuel filter clogging

Clogged fuel filters also affect the flow of fuel. Since clogging and other contaminants prevent smooth flow, the engine faces a modulation in fuel that causes difficulty for fuel flow. A clogged fuel filter causes a rough idle or misfiring, that started the P0171 engine code.

Fuel Pressure Regulator not working

A fuel pressure regulator is used for handling fuel pressures in fuel operation. When this part is not working, the system’s performance is affected. The regulator not set, fuel acceleration shifts high fuel to the gas tank, causing regulation of fuel pressure and proper output of injectors.

Vacuum Leak

Vacuum leaking occurs due to the affected positive crankcase ventilation valve intake manifold gasket; with that vacuum line added, unlimited air entered the system. Through proper sealing for this leak, air is avoided, and the ECM balances the mixture of air and fuel. Vacuum leakage will be less when there is less tearing.

The air fuel ratio sensor stops working.

This sensor calculates the air/fuel ratio of the combustion chamber. The air fuel sensor operated with the O₂ sensor for delivering a signal to the ECM. If the sensor detects an improper air/fuel ratio, it starts the P0171 warning.

MAF sensor clogging

The MAF sensor becomes clogged when contamination exists in the air. For accurate working of the engine and cabin air filters, the MAF sensor needed to be accurately cleaned.

Exhaust Leaking

Exhaust leaking for o2 sensor causes triggering of the P0171 code. ecm check feedback loop between 2 for finding fuel trimming and exhaust leaking occurs for the resulting 02 sensor for getting know system faults

The O₂ sensor stopped working.

The O₂ sensor also calculates the air-fuel mixture reading; the O₂ sensor gives faulty results when it gets damaged.
It is important to make comparison readings of the O₂ sensor with the MAF to find any errors.

How Diagnostics and Repair the P0171 Code

The main diagnosis of the PO171 engine code to find components that are causing the error or running lean. Through proper visual inspection and testing, we can solve this error. For diagnosing purposes, use an OBDII scanner and check the P0171 code. Follow these steps for diagnosing and repairing.

Find Vacuum Leaks

Check the air intake system to ensure that there are no damaged components. Inspect the vacuum hose fitting that occurs at the PCV valve and intake manifold.

Clean the MAF sensor.

Follow proper inspection of the MAF sensor according to requirements and clean it. Use the required cleaning method to prevent damage to the MAF sensor. After removing the check intake boot, look for cracks and signs of damage.

Exhaust System inspection

Check the exhaust system for leaks through the smoke machine for causes of unmetered air in the system. This test occurs many times for accurate sealing of exhaust and tightening connections.

Fuel System inspection

Check fuel pressure rating according users guidline. Accurately remove and check the fuel filter for cleaning. Check that the fuel injector and fuel pressure regulator are working well

Check O₂ Sensor Readings

Make sure the O2 sensor is working well, make comparsion of the fuel reading of the system that is measured through 02 sensor. If the reading is not accurate, it means the sensor is not working.

Spark Plugs

When the vehicle is driven for a short duration, turn off the engine and disconnect the spark plugs. Check the upper part of the white haze and connect new spark plugs. If an error still exists, perform further inspection to find faults.

How to avoid the P0171 code,

Follow these points for inspection of the PO171 code and avoiding it.

accurately clean and use the new MAF sensor and oxygen sensors according to the manufacturer’s details
Check the hose regularly since it gets worn and affected over time.
Use proper fuel quality with a fuel cleaning system, use lubrication cleaning, and avoid clogging.
Perform replacement of the air filter for good air flow, and regularly perform maintenance.

How the code P0171 is set

If the air-fuel mixture is very lean and the engine computer is not solving this condition, the fuel engine computer will turn on the check engine light and show error code P0171. system lean for bank1 or bank2 based on cylinder bank damage.

FAQs

How Do I Fix the P0171 Code?

Change the fuel pump and fuel filter frequently; also, use a new mass air flow sensor with a fault.
Use a new fuel pressure regulator and use a new fuel injector.
properly seal the vacuum leak

Which oxygen sensor is responsible for P0171?

Follow the firing order and cylinder point to make sure that the engine is where bank1 or bank2 exists. PO171 operated with the engine bank. 1 upstream through the oxygen sensor and PO174 operated with the engine bank 2 upstream O₂ sensor

How do you fix an engine that is too lean?

To solve that error, proper cleaning of the mass airflow sensor was performed, and it was replaced with a new one according to requirements.

Can a vacuum leak cause P0171?

• The P0171 code defines that the vehicle engine is running lean for bank 1. So the air-fuel mixture comes with high air but less fuel. That change in composition occurs due to a bad oxygen sensor, a mass airflow sensor not working, or a vacuum leak.
