What is a Digital Manometer: Features, uses, types

A digital manometer is a tool that is used for pressure calculation with high accuracy. This is used for performing different operations in industries, like HVAC, meteorology, and manufacturing. In this post we will cover features of the digital manometer and its working features. So let’s get started.

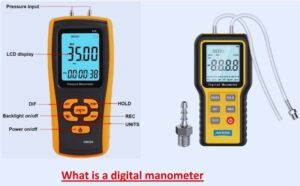

What is a digital manometer?

The digital manometer is an electronic tool that is used for measuring gas or liquid and can transform into a digital signal that helps to get details for processing.
It comes with different components like a sensor, an analog-to-digital converter, a display, and a microprocessor.

The sensor is the main part of the meter that helps to transform pressure into an electrical signal. Different sensor techniques also come with millimeter-wave radar, piezoresistive, piezoelectric, etc.
that performed different operations and gave accurate results
An analog-to-digital converter is used for converting an analog signal into a digital signal for further processing and display.
The microprocessor provides processing and analyzes the digital signal and gives pressure values through the display.

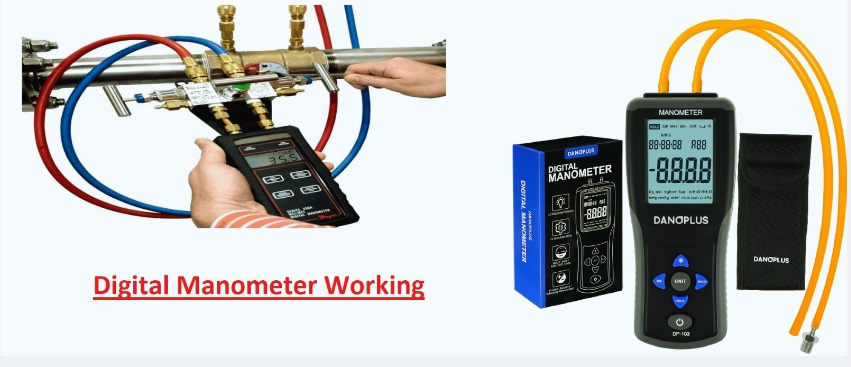

Digital Manometer Working

The main component of a digital pressure gauge is a sensor. A normal sensor comes with piezoresistive sensors and magnetic sensors.
Working is based on the pressure changes’ effect on sensor resistance or voltage value.
For measuring pressure, pressure detected in the sensor is transformed into an electrical signal with a converter that is then further processed through a circuit and shown on the display.
In this processing, the piezoresistive sensor transforms pressure into an electrical signal through working that metallic sheet; resistance varies due to deformation, and the magnetic sensor transforms the variable magnetic field signal into an electrical signal according to the magnetoelectric effect.
Here, the detailed working steps involved for the digital manometer are explained.

Pressure detection

The main part of a digital manometer is a pressure transducer that senses pressure. Transducers bear pressure through gas, liquid,

Signal Conversion

When the pressure transducer detects pressure, it transforms pressure into an electrical signal. This process is known as the piezoelectric effect. In this process, materials produce an electric charge due to pressure or mechanical stress.

Signal Processing

• The signal generated through the transducer has weak strength that is amplified through the electric circuit of the meter. In this step, signal filters noise and manages temperature changes that affect values.

Display

The final processed signal is converted into a readable pressure value, shown on the digital display. Through the display, we can get accurate readings in different measuring units.
psi, Pa, and bar.

Types of Manometers

the main working of a manometer is to measure fluid pressure, and it comes with different types and uses.

Traditional manometer

This meter, also called an analogue manometer, measures pressure value using fluid displacement, like water or mercury existing in a U-shaped tube.
It’s one point connected with a gas line, like when pressure is applied, pressure moves liquid in the tube, and liquid reaches the other part of the U-shaped tube. pressure value measured through the manometer scale

Digital manometer

digital meter used for measuring and displaying the pressure of gases or liquids and showing the output digitally. It does not use fluid; the digital manometer uses a pressure transducer for detecting the pressure leve,l that is converted into an electronic signal that is shown on the digital display.

How to use a digital manometer?

Follow these steps for measuring a digital manometer.

First of all, use a new or strongly charged battery for the meter that helps to get accurate readings without error. Some new meters’ batteries also do not work well and require accurate charging or a new battery.
Make zero adjustments since it helps to set the display at null and helps to remove any chances of errors in readings.
Measure static pressure through use of a digital manometer; positive pressure applies higher pressure than the atmosphere, and negative pressure shows pressure less than atmospheric pressure. An application that needed static pressure for conditions where flow is uniform and a stable insertion tube was used
if you are measuring pressure in a condition where light is dim or dark. The meter comes with a backlight on this light for measuring pressure.For using the backlight, first off, digital manometer. Hold the power button for some seconds for the backlight.
Some digital manometers have memory features that store measured values that can be used when required. for saving readings in the memory mode of the manometer

Features of Digital Manometers

Basic features of digital manometers are as

High Accuracy

• The digital pressure gauge comes with high accuracy and reliable working that provides accurate and stable values. It comes with fewer nonlinear errors, temperature does not affect measured values, and it has stability features. It is used for high-pressure applications.

Programmability

• The digital pressure gauge is flexible and easy to program and set to a value according to requirements. We can choose units, sampling rates, and store data through the use of different settings.
These features help to use the manometer for different conditions.

easy processing

Digital pressure meters help with fast connection and easy data processing, which helps with easy transmission of data. with the use of digital interfaces, a digital pressure gauge connected with a computer for finding data monitoring, recording, and data analysis.
Some meters come with built-in memory features that save data and extract it when needed.

different types

Digital pressure meters come in different types. It has features to handle portable devices for testing and debugging. It is used for industrial automation and control systems; also, some meters have waterproof features, so they work in moist conditions.

Customizable design

• The digital manometer also has customizable features. We can select different ranges, levels of accuracy, and output signals according to requirements. Some meters have hastemprature compensation, remote display, and multi-point calibration for fulfilling requirements.

Digital manometer vs. traditional manometer

The digital meter has more features than the conventional meter. that are as

The digital manometer has features to use for measuring pressure at different conditions.
It does not need a level surface for providing accurate readings.
It makes a connection with the computer and PLC for getting readings to display.
It is low weight and portable, and the value is displayed for reading.
It has features of corrosion deviations from standard value through software programming.

FAQs

How does a digital manometer work?

A digital manometer uses an electronic sensor for measuring pressure and shows the reading on a display. It has high accuracy and precise results and is employed for measuring different conditions of pressure.

What is a manometer, and how is it used?

manometer used for measuring fluid or gas in confined places like in a boiler. A manometer shows the value of pressure relative to atmospheric pressure.

What are the parts of a digital manometer?

A digital manometer is a meter that is used for measuring the pressure of liquid and transforming it into a signal for processing. Its main parts are a sensor, an analog-to-digital converter (ADC), a microprocessor, and a display.

Can you use water in a manometer?

The measuring units used are inches of mercury, through mercury as fluid, and inches of water, through use of water or oil.

What can a digital manometer be used to check?

It quickly detects gas leaks and also errors in the air conditioning system. It is also used usedfor HVAC maintenance; monitoring gas pressure in piping and compressor systems also helps to measure blood pressure.

Which is better, an inclined manometer or a digital manometer?

angle design of inclined manometer to use that provides accurate values. Digital manometers are also used since they have high accuracy and are easy to use.

What are the three types of manometers?

The basic types of manometers are piezometer tubes, U-tube manometers, and inclined manometers.
Differential manometers also have a subtype, which is the U-tube differential manometer, which is the most commonly used type.
